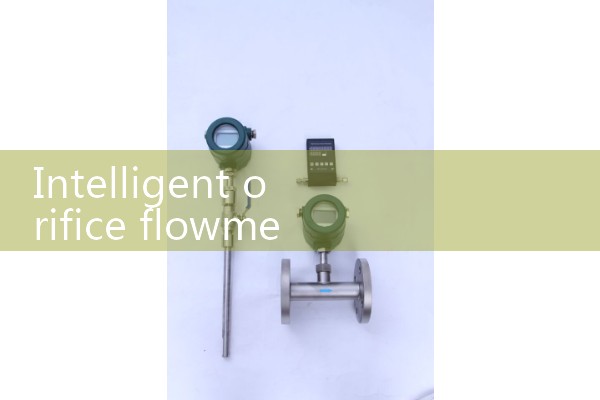

Intelligent orifice flowmeter | How to read orifice flowmeter

『Intelligent orifice flowmeter』Related information(flow rotameter|digital flow meter|balo meter|hydraulic flow meter|volumetric meter|positive displacement meter|pitot tube flow meter|displacement meter|cfm meter|variable area flow meter|inline flow meter|differential pressure flow meter|calibrated flow meter|velocity meter|paddle wheel flow meter|oval gear flow meter|anemometer hvac|multiphase flow meter|doppler flow meter|thorpe tube flowmeter|heat flow meter)

1. Cable tension sensor

2. The reason for the gradual decrease in flow rate of the orifice flowmeter

The gradual decrease in flow rate of the orifice flowmeter is usually caused by blockage of the throttling device, changes in fluid properties, or measurement system failures. The accumulation of impurities or crystals in the pipe routing at the front end of the orifice plate can alter the cross-section of the flow channel, causing the actual flow coefficient to deviate from the design value. A certain chemical plant once formed an oil film on the surface of the orifice plate due to the presence of condensate oil in natural gas, resulting in a measurement deviation of up to 15%. In low temperature environments during winter, water containing media are prone to freezing at the throttling element, causing a decrease in the flow area. This seasonal fluctuation requires special attention. 1. Changes in fluid parameters such as viscosity, density, or temperature of the medium can affect measurement accuracy. In steam flow measurement, a pressure fluctuation of 0.1 MPa can cause a density change of about 3%, which can cause a drift in the displayed value for systems without temperature and pressure compensation. During gas measurement, component changes are particularly sensitive. For example, after adjusting the calorific value of gas, methane content fluctuates by 5%, and although the actual flow rate remains unchanged, the displayed value may deviate by 8%. 2. Abnormal accumulation or leakage of pressure in the pressure pipe of the pressure relief system can cause distortion of the differential pressure signal. In steam measurement, the unbalanced liquid level in the condenser can cause permanent deviation

. A certain thermal power enterprise experienced a continuous low flow display due to uneven heat tracing of the pressure pipe in winter. The scaling of the isolation diaphragm of the membrane type differential pressure transmitter can also weaken the sensing sensitivity, which requires professional cleaning and calibration. 3. The wear of the inlet edge of the orifice plate in the mechanical state of the equipment can increase the flow coefficient, and the increase in surface roughness caused by corrosion may also reduce the coefficient reduction band and leakage. This composite effect requires actual calibration. The additional resistance caused by the installation of eccentric or sealing gaskets protruding into the interior of the pipeline often manifests as a slow linear decrease in flow readings. The module failure of the smart transmitter may exhibit a jumping change, which is significantly different from the slow descent characteristics caused by mechanical reasons. During regular maintenance, it is important to check the sharpness of the orifice plate, with the standard being that the edge arc radius should not exceed 0.0004d (where d is the aperture). For easily crystallized media, it is recommended to install flange pressure orifice plates and set up online cleaning devices when the process allows. Winter insulation measures need to cover the entire pressure pipeline, and the zero calibration frequency of the transmitter should be appropriately increased according to the cleanliness of the medium.
