10 cc/min Flow Meter Integration With PLC Systems
Quick Answer: A 10 cc/min flow meter almost always uses a positive displacement, thermal mass, or micro Coriolis sensor. The PLC reads flow data via 4-20 mA, pulse, or RS485 Modbus RTU. Silver Instruments supplies panel-ready meters with an accuracy better than ±0.2% of reading for dosing and pilot plant loops.
Why 10 cc/min Is a Different Animal
Most plant flowmeters start at DN15 and handle litres per minute. At 10 cc/min you are dealing with drops per second. A single bubble in the line can become 5% of the reading. This is the range where gravimetric calibration counts, not a quick span check with a bucket. Process engineers in pharmaceutical and fine chemical plants know the headache. A line restriction or a tiny air pocket changes the signal so fast the PLC loop overcorrects if you are not careful.
We have seen this in a vitamin extraction plant in Thailand. Their PLC was chasing a fluctuating 4-20 mA from a cheap turbine meter. Data looked like a seismograph. The fix was a micro oval gear meter with a pulse conditioner that smoothed the output before the PLC analog input card. You want a meter that moves the noise floor below 0.5% of actual flow, not the full scale span.
Sensor Physics That Work Below 100 mL/min

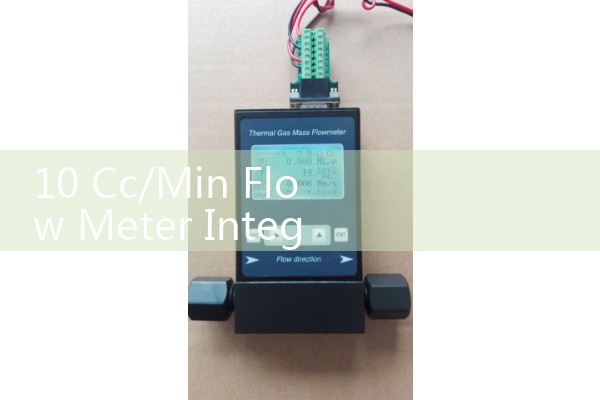

Three sensor types cover 10 cc/min reliably. Positive displacement oval gear meters with PEEK gears and sapphire bearings work down to 0.5 cc/min on water-like liquids. A 10 cc/min full scale gives you 0.1 cc resolution per pulse. That is enough for a PLC high-speed counter input. Thermal mass meters with a bypass capillary tube handle micro gas flows and aggressive chemicals when you use a PTFE or perfluoroalkoxy lined sensor. Micro Coriolis meters with a single bent tube can do 0-50 cc/min and give you mass flow, density, and temperature over a single Modbus register map. Silver Instruments configures these three variants from stock with a 15 ms response time.
Here is the thing. If you measure viscous oils or polymers above 100 cP, skip thermal mass. Go oval gear or Coriolis. Viscosity changes shift the thermal transfer curve enough to require field recalibration. An oval gear meter plus an RTD for temperature input to the PLC lets you do manual correction in a function block. Not elegant but it works on a budget.
PLC Wiring and Signal Conditioning
Most 10 cc/min meters output a frequency pulse. A PLC high-speed counter module reads the pulse train and calculates instantaneous flow. Use a shielded twisted pair to the counter input with the shield landed at the PLC end only. If your meter has an open collector NPN output, a 2.2 kΩ pull-up resistor to 24 VDC is enough. Sinking PLC inputs work directly. We always specify a minimum pulse width of 0.5 ms so the counter does not miss edges at 500 Hz. For a 10 cc/min range with a K-factor of 10,000 pulses per litre, you get roughly 1,667 pulses per minute. That is about 28 Hz. A standard 100 kHz counter works fine.
Analog 4-20 mA is simpler if your PLC does not have a spare HSC. A 0-10 cc/min span mapped to 4-20 mA gives you 156 μA per cc/min. Resolution at 12-bit analog input is about 0.02 cc/min, assuming 0.1% noise. In practice, you get 0.1 cc/min stable readings if you filter the signal with a 2-second rolling average in the PLC logic. Water treatment skids in the Middle East do this for antiscalant dosing. The signal goes to a PLC5 or S7-1200, and the BOOL output fires a diaphragm pump every few seconds.
RS485 Modbus RTU is the choice for multi-variable data. A micro Coriolis at 10 cc/min gives mass flow, temperature, and density in three consecutive registers. The PLC reads them in a single block transfer. Baud rate 19.2 k, 8N1, slave ID 1. Silver Instruments pre-sets the communication parameters to match your PLC config sheet so the panel builder does not need a la
Real Installation Details That Save You a Service Call
Do not clamp a 10 cc/min meter straight to a pump outlet. Pulsating flow from a piston or diaphragm pump creates a standing wave in the sensor. The PLC reads flow peaks that are double the average. Install a small pulsation damper inline before the meter. A simple dead volume with a gas pocket can work. One of our customers in Vietnam making printing ink uses a 50 mL stainless steel expansion chamber before an oval gear meter. Their Siemens Logo PLC reads stable pulses without software filtering.
Flush the system before connecting the meter. Debris bigger than 50 microns can seize PEEK gears in seconds. A 60 mesh Y-strainer upstream is cheap insurance. Also, run the meter wet during storage if you use it periodically. Sticky solvents dry inside the measuring chamber and break O-rings on restart. A glycerin-water mix works for pharmaceutical lines.
How Silver Automation Instruments Ships a Turnkey Integration Set
We tag every meter with a calibration certificate traceable to an ISO 17025 lab. The certificate lists actual K-factor at 10% and 100% of range, not just a stamp. For a 10 cc/min oval gear meter calibrating on water at 20°C, you get repeatability data over five points. The set includes a meter, a 1.5 m cable with M12 connector, and a pulse conditioner module if requested. You give us your PLC input type (PNP/NPN, 4-20 mA, RS485), pipe size in mm, and liquid viscosity in cP. We configure and label the unit. The standard lead time to Australia is five working days from our Shenzhen warehouse.
For hazardous areas, we supply ATEX Zone 1 rated thermal mass meters with galvanic isolation barriers ready to wire to a safety PLC. Flameproof housing, PT100 input for gas temperature compensation, and a backlit local display that doubles as a setup tool. The display shows cc/min and totalised volume in litres, useful for operator checks without a HMI.
FAQ
Q: Can a standard electromagnetic flowmeter measure 10 cc/min?
No. Even the smallest magmeter, DN2, needs a minimum conductivity of 5 µS/cm and a flow velocity above 0.1 m/s. At 10 cc/min the velocity is too low for a stable sigal. Use oval gear or micro Coriolis.
Q: What PLC brand integrates easiest with a 10 cc/min pulse output meter?
Any brand with a high-speed counter works: Siemens S7-1200 HSC3, Allen-Bradley MicroLogix 1400, Omron CP1L. Silver Instruments ships the meter with a test report showing pulse frequency at three flow points so you can verify the PLC scaling block without a flow rig.
Q: How do I calibrate a 10 cc/min meter in-house?
Use a weighing scale with 0.01 g resolution and a stopwatch. Collect fluid in a container on the scale for exactly 60 seconds. 10 cc/min of water is 10 g/min. Compare the collected mass to the PLC totaliser. Do this at three flow rates. Do not use a measuring cylinder; the meniscus error is too large.
Q: Is Modbus or 4-20 mA better for a 10 cc/min dosing skid?
4-20 mA is enough for flow rate only. If you need density, temperature, or totaliser data without math in the PLC, use Modbus RTU. Many skid builders use both: 4-20 mA for the PID loop and Modbus for data logging to a paperless recorder.
Q: What is the shipping time to Saudi Arabia for an ATEX-certified micro flow meter?
Silver Instruments dispatches ex-stock ATEX thermal mass meters within seven working days after receipt of your order. We ship DHL or FedEx. Typical transit to Dammam or Jeddah is 5-7 calendar days. Send us your pipe diameter, gas type, and maximum pressure. We will return a quote with the datasheet on the same working day.
Send us your pressure (bar), temperature (°C), pipe size (DN), and flow range. We will reply with a recommended meter, wiring diagram, and price for your PLC integration.
