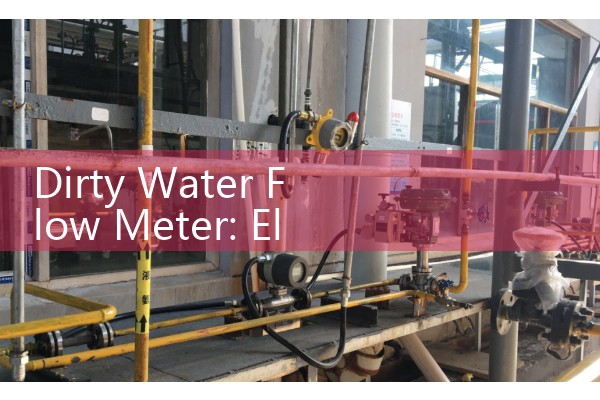

Dirty Water Flow Meter: Electromagnetic Sewage and Effluent Main Processing Spools
Quick Answer
A dirty water flow meter for sewage and effluent main processing spools is usually an electromagnetic type. It has no moving parts and does not clog on solids. Silver Instruments supplies spool type mag meters in DN15 to DN2000 with PTFE or polyurethane liners and 4-20 mA HART output. Send your pipe size, pressure, temperature and flow range for a fixed price quote.
Why Electromagnetic Meters Work in Dirty Water
Dirty water from municipal sewage, food waste, mining runoff and sludge return lines often carries solids, grease and abrasive particles. Mechanical meters with rotors or gears fail in these lines. An electromagnetic flow meter has a straight open bore. The only wetted parts are the liner and electrodes. There is no impeller to jam and no filter to clean.
Electromagnetic measurement needs a minimum liquid conductivity. Most sewage and effluent has 500 to 2000 µS/cm. That is well above the 5 µS/cm threshold used by Silver Instruments converters. Sludge and slurry flows also work because the meter reads velocity across the full pipe cross section.
Main Processing Spools and Flange Fit
A main processing spool is a short pipe section with flanges. The electromagnetic flow tube sits inside this spool. Customers often order the meter with factory welded or fitted flanges to match existing pipework. Common standards include AS4087 for Australia, ANSI B16.5 for Southeast Asia and the Middle East, and EN 1092-1 for Pacific projects.
We have supplied spool pieces for DN80 sewage return lines in Singapore, DN150 sludge transfer in Batam and DN250 effluent discharge in Perth. Last year a customer in Vietnam ordered 12 DN100 meters for sludge return lines. The flange drilling and face finish match the customer pipe class. The meter arrives ready to lift between two flanges.
Sizing and Sensor Selection
Size the meter by pipe diameter first. Electromagnetic meters do not need long straight runs. A typical installation needs 5D upstream and 3D downstream. That saves space in packaged treatment plants and pump skids. For dirty water with high solids, choose a polyurethane liner. It resists abrasion better than PTFE. For effluent with oil or chemical carryover, PTFE liner plus Hastelloy C electrodes gives better chemical resistance.
Pressure rating is selected from PN10, PN16 or PN40. Most wastewater lines run below 10 bar. A pump discharge after a progressive cavity pump may reach 12 bar. Check your pump curve before you specify. Temperature for standard polyurethane liner is 0 to 60 °C. Use PTFE liner for continuous 80 to 120 °C. Accuracy is 0.5 percent of reading for flow velocity above 0.5 m/s.
Outputs and Control Integration
Silver Instruments electromagnetic flow meters come with 4-20 mA HA
For aeration basin return sludge the 4-20 mA signal goes to a PLC or SCADA. For remote sites Modbus RTU works over a single twisted pair. One customer in Western Australia uses solar power with 24 V DC meters and pulse output to a data logger. The total power draw is under 3 W.
Installation Notes from the Field
Keep the meter full of liquid at all times. Do not install at the highest point of a drain line. Air bubbles can touch the electrodes and cause unstable readings. In a gravity sewer place the meter in a section that stays full. If the line runs partially full use a drop pipe or a P trap downstream to hold back liquid.
Grounding is important. For plastic or lined pipe use grounding rings or grounding electrodes. We include grounding rings as standard on DN50 to DN300 sewage spools. In practice most engineers skip the grounding check. A floating ground makes the reading jump and the PLC sees false flow.
FAQ: Dirty Water Flow Meter Selection
Can an electromagnetic flow meter measure sludge with 2 percent solids?
Yes. The meter reads conductive liquid regardless of solids content. Choose a polyurethane liner and 316L electrodes for typical sludge. For abrasive sand or mining slurry, use polyurethane liner and tungsten carbide electrodes.
What is the minimum conductivity for sewage?
Most municipal sewage is 500 to 2000 µS/cm. The Silver Instruments converter works down to 5 µS/cm. So sewage, effluent, sludge and manure slurry are within range.
Do I need a straight run on a dirty water line?
A standard installation uses 5D upstream and 3D downstream. That is shorter than orifice plates or turbine meters. The electromagnetic meter has no moving parts to disturb the flow profile.
Can the meter handle solids and grease?
Yes. The open bore lets rags, grit and grease pass. A mechanical meter will jam. The main risk is coating on electrodes. In heavy fat or lime sludge service, use a soft rubber liner and schedule a weekly flush with clean water.
What information do you need for a quote?
Send us pipe diameter in DN, pressure in bar, temperature in °C, flow range in m3/h or L/s, power supply 24 V DC or 220 V AC, and flange standard. We will reply with a fixed price and delivery time.
