Dosing Flow Meter: Sizing Automated High Speed Chemical Blending Loop Valves
Quick Answer: Size the automated blending loop valve after you collect live flow data from the dosing flow meter. A Coriolis dosing flow meter gives mass flow and density in one device for high speed chemical lines. That data helps you pick a valve Cv that keeps the loop stable at your fastest blend cycle.
The valve and the meter form one control loop. If the valve is sized first, the loop often hunts. We see this on sites in Vietnam, Indonesia, and Mexico where chemical feed lines run from 2 to 8 bar. The flow meter has to be selected before the valve or at least in the same sizing step.
As a dosing flow meter manufacturer, Silver Automation Instruments serves chemical skid builders and end users in Southeast Asia, Oceania, Latin America, Africa, and the Middle East.
Why Loop Valve Sizing Starts with the Dosing Flow Meter
A high speed blending loop opens and closes a valve every few seconds or milliseconds. The dosing flow meter must send a signal fast enough for the PLC or DCS to see what the valve is doing. If the meter update is slow, the controller overcorrects. The result is overshoot and wasted chemical.
Silver Automation Instruments supplies flow meters for chemical dosing with update rates from 5 ms to 100 ms depending on the model. This range covers fast solvent lines, catalyst injection, and small additive streams. The meter signal also gives you a record of what actually entered the batch.
Sizing Data You Must Collect
You need more than a flow range. The following parameters shape the meter and the loop valve.
- Minimum and maximum flow rate in kg/h or L/h
- Fluid viscosity in cP at dosing temperature
- Line size from DN8 to DN50 on most skids
- Valve differential pressure in bar at minimum and maximum stroke
- Required dosing accuracy such as ±0.5 percent of rate
If the valve Cv is too large, small changes create flow overshoot. If the valve Cv is too small, the pump works too hard and the loop reaches full stroke early. The flow meter range must cover the full valve range plus some margin.
Coriolis Dosing Flow Meter for Solvent and Catalyst Lines
For hydrocarbon solvents, coatings, catalysts, and high value chemical additives, a Coriolis meter is the fastest way to get true mass flow and density. The meter reports kg/h directly. No separate temperature compensation is needed because the Coriolis principle measures mass independent of fluid properties.
We supplied a 15 mm Coriolis dosing flow meter on a polymer dosing skid in Malaysia. The loop ran at 3 bar and controlled mass flow from 3 to 60 kg/h. The meter sent a 4-20 mA HART signal to a control valve. Silver Instruments recommends a Coriolis meter when the fluid value is high or density varies from batch to batch.
For solvent lines in ATEX Zone 1, Silver Instruments can supply Coriolis meters with intrinsic safety and 4-20 mA HART.

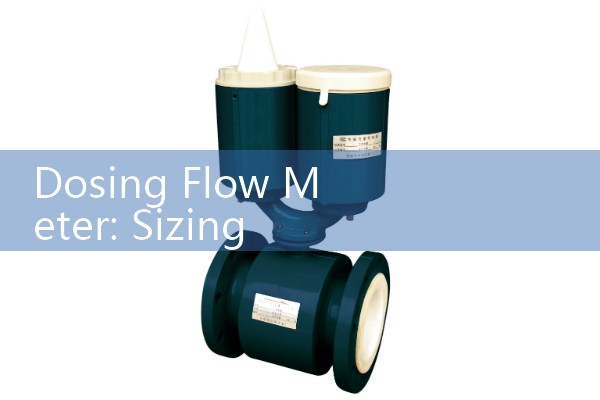

Electromagnetic Dosing Flow Meter for Water Based Chemicals
For water treatment chemicals, caustic, acid, and polymer solutions, electromagnetic flow meters work well if conductivity is above 5 µS/cm. A DN15 electromagnetic meter handles 0.1 to 10 L/min. The wetted parts can be PTFE and Hastelloy C. This gives good chemical resistance on skids that run acid today and alkali tomorrow.
In a desalination plant in the Middle East, we sized electromagnetic dosing flow meters for antiscalant and sodium bisulfite lines. The loops used pulse output to a PLC. This kept the valve response stable at 2 to 4 bar. The customer needed no mo
Oval Gear Dosing Flow Meter for Small Additive Lines
For very low flow rates from 0.1 to 120 L/h, an oval gear flow meter is often better than a Coriolis meter on price. Defoamers, dyes, and lubricants are common examples. Viscosity is important. High viscosity can actually improve accuracy in an oval gear meter.
A paint manufacturer in Thailand had an additive line running at 6 cP. The operator needed a dosing flow meter with accuracy of ±0.5 percent of reading. We supplied an oval gear meter with a DN8 connection and 4-20 mA output. The meter signal allowed the blending valve to close within 0.5 seconds after the setpoint was reached.
How to Pair Meter Output with Loop Valve Cv
Use the flow meter output to check actual flow at minimum and maximum valve position. If the meter shows a dead band from 20 to 40 percent valve stroke, the valve or actuator is oversized. A typical high speed loop needs a valve with a rangeability of at least 25 to 1. The flow meter should have a rangeability of 100 to 1 or better.
For chemical blending, the valve Cv is usually between 0.01 and 1.0. For a 15 mm line at 2 bar with water based chemical, a Cv of 0.2 to 0.5 is a practical starting point. Send us your pressure (bar), temperature (°C), pipe size (DN), and flow range. We will suggest a dosing flow meter and a starting Cv range for your valve supplier.
Field Notes from Automated Blending Systems
In practice, most engineers skip the meter zero check after replacing a valve. That creates an offset. We have seen this on customer sites many times. A customer in Mexico ran an emulsion line at 45 °C. The flow meter read 0.8 kg/h at rest. The loop kept adding a small amount of water to each batch. After rezeroing the Coriolis meter, the offset disappeared. The next batch hit the target concentration.
Here is the thing. High speed blending loops fail quietly. The flow meter is often the only device that can show a small offset or a slow valve response. Once the meter data is trusted, the valve sizing becomes easier because you are working from real numbers.
FAQ
Which flow meter is best for automated high speed chemical blending?
Coriolis mass flow meters fit most high cost or variable density chemicals. Electromagnetic meters suit conductive water based chemicals. Oval gear meters suit small additive lines from 0.1 to 120 L/h.
What pipe size is typical for dosing flow meters on blending skids?
DN8 to DN25 for additives. DN25 to DN50 for main chemical lines. The exact size depends on flow range and viscosity at dosing temperature.
What output signal should the dosing flow meter send to a PLC or DCS?
4-20 mA HART is common. Pulse output works for batching. Modbus or digital protocols reduce wiring on large skids. The valve and meter should share the same control scan time.
How fast should the flow meter update in high speed blending?
Look for update rates of 50 ms or faster for Coriolis meters. Electromagnetic meters at 100 ms may work for slower loops. Check the total loop time of valve, meter, and controller.
Can Silver Instruments help size a dosing flow meter?
Yes. Send us your pressure (bar), temperature (°C), pipe size (DN), flow range, and fluid name. We will respond with a meter recommendation and a starting valve Cv range.
