Ifm Flow Meter Calibration: Field Programming Methods to Scale Sensor Data Outputs Across Varied Viscosities
Quick Answer: Field calibration of an Ifm flow meter starts with checking the analog output scaling in the device menu. Compare the live 4-20 mA value against a known reference flow rate, then reprogram the span and offset using the panel buttons or IO-Link. Silver Automation Instruments supplies compatible flow meters and supports the same field scaling steps.
Why Viscosity Changes Affect Field Calibration
Viscosity does not change the volume reading on a magnetic inductive flow meter. But viscosity changes pressure drop, pump speed, and density compensation. Many processes read volume flow from the sensor and then assume constant mass flow. For fuels, sugar syrups, and chemical blends this assumption fails when viscosity moves from 10 cP to 500 cP. We have seen this on a paint mixing line in Vietnam. The operator kept the same 4-20 mA scale but the actual mass flow drifted because fluid density changed with viscosity. Field programming corrects the sensor data output before it reaches the PLC.
Field Programming Tools You Need on Site
For an Ifm SM series meter you need the operating manual and a small flat screwdriver for the pushbuttons. If the meter has IO-Link you can use a USB IO-Link master and the Ifm programming software. But many plants in Southeast Asia and the Middle East still do local programming through the display menu. You need a reference flow rate from a calibrated reference meter or a tank fill test. A PT100 temperature sensor helps when viscosity correction depends on temperature. In ATEX Zone 1 areas use an approved interface and follow the site permit rules.
Step by Step Method to Scale the 4-20 mA Output
Step 1. Fill the pipe and run the pump at normal production flow.
Step 2. Check the instantaneous flow on the display and compare it to a reference meter or a calibrated tank fill test.
Step 3. Enter the setup menu and find the analog output submenu. On many Ifm units the path is Setup then Outputs then Analog Output.
Step 4. Set the low range value and high range value. For a DN15 pipe on a chemical dosing skid the range may be 20 to 600 L/h. For a larger process line set 0 kg/h as 4 mA and 2000 kg/h as 20 mA.
Step 5. Use the loop test function if the device supports it. Read the PLC value. If the PLC reads 19.8 mA when the meter sends 20 mA, correct the loop scaling in the control system.
Step 6. Repeat the check at a low flow point because viscosity effects are stronger at low flow.
Scaling Sensor Data Outputs for Different Viscosities
When the plant runs one fluid the job is simple. You scale once and verify once. When a plant runs multiple products with different viscosity you need a different method. Some engineers change the span manually before each batch. A paint manufacturer in Malaysia uses two parameter sets for solvent-bas

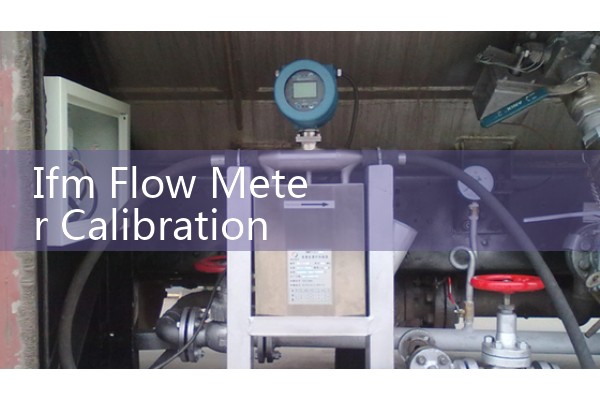

_600x400.jpg)
Common Viscosity Ranges and Sensor Correction
Water at 20 °C is about 1 cP. Light diesel is about 3 to 6 cP. Heavy fuel oil can be 50 to 700 cP. Glucose syrup can be several thousand cP. For a magnetic flow meter viscosity does not affect the volume reading. But for a Coriolis meter or thermal mass meter the viscosity shift changes the flow profile and sensor damping. Set damping to 3 seconds for stable viscous flow. For water use 1 second. Most engineers skip this part and then wonder why the output signal is noisy.
When Not to Calibrate in the Field
Not every drift can be fixed with field programming. If the sensor is damaged or the liner is swollen from solvent attack, no menu change will help. Return the meter or replace it. If the process runs above 120 °C and the electronics drift, you need a bench calibration with a traceable reference. For custody transfer in oil and gas, a third party calibration certificate is often mandatory. Field scaling changes the output but does not produce a traceable certificate.
Silver Instruments Alternative Flow Meters and Sensor Scaling Support
If you need a replacement for an Ifm flow meter or a more robust meter for high viscosity, Silver Automation Instruments supplies magnetic, Coriolis, ultrasonic, vortex, oval gear, and thermal mass flow meters. We sell to plants in Indonesia, Vietnam, Nigeria, Chile, Saudi Arabia, and Australia. Send us your fluid name, viscosity range, conductivity in µS/cm, pressure in bar, temperature in °C, pipe size in DN, and flow range in kg/h or L/h. We will recommend a model and pre-scale the 4-20 mA HART output before shipping.
Contact Silver Automation Instruments for flow meter calibration support. Tel: +86-25-68650347. WhatsApp: +86-25-52155837. WeChat: +86 15365082610.
FAQ
Can you field calibrate an Ifm flow meter without a reference meter?
You can check the loop and output scaling. But you cannot verify accuracy without a reference flow rate or a tank fill test.
Does viscosity change the 4-20 mA output on a magnetic flow meter?
No. Viscosity does not change volumetric flow in a magnetic flow meter. But density and pressure drop change. You may need mass flow compensation.
What output signals can you scale in the field?
You can scale 4-20 mA, 0-10 V, pulse output, and HART variables on many Ifm and Silver Instruments flow meters.
Can Silver Instruments program the flow meter before shipment?
Yes. We pre-scale the output based on your process data. This saves time during startup.
What parameters do you need for a quote?
Send fluid name, viscosity in cP, conductivity in µS/cm, pressure in bar, temperature in °C, pipe diameter in DN, and flow range. We will reply with a model and price.
