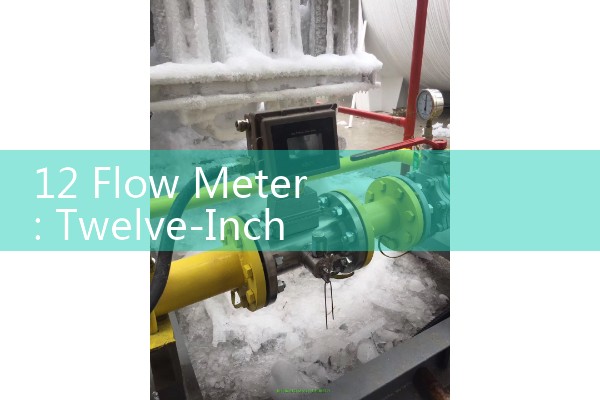

12 Flow Meter: Twelve-Inch Flanged Wastewater Effluent Management Systems
Quick Answer
For a 12 inch wastewater effluent line, a flanged electromagnetic flow meter in DN300 size is the most practical choice. It handles raw sewage, treated effluent, sludge return and filter backwash without moving parts. Silver Automation Instruments supplies this meter with 4-20 mA HART output, hard rubber or PTFE liner, and IP68 sensor options for flooded pits. Send us your flow range, pipe pressure and effluent temperature for a DN300 quote.
Why a Twelve-Inch Flanged Meter Fits Effluent Management Systems
Here is the thing. Wastewater effluent is not clean and not stable. A DN300 line can carry grit, rags, sand, oil films and variable conductivity. An electromagnetic flow meter has no moving parts and no obstruction in the pipe. Liquid flows straight through the full bore sensor. Hard rubber liners resist abrasion from sand and sludge. PTFE liners handle fats, oils and chemical carryover. We have seen plants try propeller meters in raw effluent and then replace them within one season. That is why most engineers now specify a full bore magmeter for 12 inch effluent pipes.
Flow Range and Accuracy for DN300
A 12 inch electromagnetic flow meter covers a wide measuring range. Typical accuracy is plus or minus 0.5 percent of reading for velocities from 0.5 to 10 meters per second. For DN300, this range equals roughly 127 to 2543 cubic meters per hour. In practice, most effluent lines run between 0.5 and 3 meters per second. Do not size a 12 inch meter for a line that normally runs below 0.3 meters per second. Low flow signal drops and repeatability suffers. Send us your minimum, normal and maximum flow rate in cubic meters per hour and we will check the velocity against the DN300 sensor.
Liner and Electrode Selection
For raw sewage and sludge return lines, hard rubber liner is the workhorse. It handles sand, grit and constant solids. For effluent with solvent traces, chemical cleaning runoff or temperature above 60 degrees Celsius, specify PTFE liner. Electrode materials include 316L stainless steel, Hastelloy C and titanium. For chlorinated effluent, 316L is usually fine. For seawater mixing or high salinity brine, we recommend titanium electrodes. Tell us the chloride concentration and pH range before you order.
Flange Standards and Installation in Effluent Systems
A 12 inch flanged meter is heavy. A DN300 sensor with carbon steel body and flanges can weigh 180 kilograms or more. Use proper pipe supports and avoid pulling the meter into alignment with bolts. Install the meter with a straight run of 5 pipe diameters upstream and 3 downstream. For effluent pumping stations, keep the sensor full of liquid at all times. For below grade pits, select IP68 sensor with submersible cable. We supplied IP68 DN300 meters to a sewage lift station in the Philippines where the pit floods during monsoon season. The meters kept working because the sensor body and cable glands were sealed for continuous submersion.
Output and Control Integration
The wastewater effluent meter can output 4-20 mA HART, pulse, frequency and RS485 Modbus RTU. Most plants use 4-20 mA HART to the PLC or SCADA system. Pulse output is useful for total
Power, Pressure and Temperature Limits
Standard power is 220 V AC, 110 V AC or 24 V DC. Pressure rating depends on the flange and liner. DN300 flanged meters are typically rated PN10 or PN16 in metric systems and Class 150 in ANSI systems. Medium temperature range is 0 to 80 degrees Celsius for hard rubber liner and -20 to 150 degrees Celsius for PTFE liner. For hot effluent from digesters or pasteurization processes, check the actual temperature and pressure before specifying. Our team can check the PN rating and liner compatibility against your operating envelope.
Common Buying Mistakes on 12 Inch Effluent Meters
We have seen these mistakes on customer sites many times. Most engineers skip a few checks on 12 inch effluent meters. They order a flanged meter without confirming the flange standard and bolt circle. They size by pipe diameter only and ignore low flow velocity. They specify a compact meter for a flooded pit without IP68 protection. We have corrected all three issues on customer sites. Send the pipe schedule, flange standard, min and max flow rate, ambient conditions and cable length. This will avoid rework and extra freight.
Industry Examples
Last year a contractor in Saudi Arabia ordered six DN300 flanged electromagnetic flow meters for a wastewater effluent pump station. The meters were configured for PN16 flanges, hard rubber liners, 316L stainless steel electrodes and IP68 sensors. All units shipped with 15 meter submersible cables. The site team installed them in concrete pits below the pump deck. In Malaysia, a palm oil mill uses a similar 12 inch flanged meter on its anaerobic pond effluent line. In both cases, the buying decision came down to full bore flow, no moving parts and stable 4-20 mA HART output.
FAQ
What flow meter is best for a 12 inch wastewater effluent pipe?
A full bore flanged electromagnetic flow meter is best for DN300 effluent lines with solids, variable conductivity and low pressure drop. It is better than turbine, venturi or ultrasonic in raw wastewater because there is no obstruction and no moving part.
What liner should I select for effluent water?
Hard rubber liner is the default for raw sewage and sludge. PTFE liner is used for high temperature, oil and grease, or chemical carryover.
What output signals are available?
4-20 mA HART, pulse, frequency and RS485 Modbus RTU. 4-20 mA HART is the most common for plant control systems.
Can the meter run partially full?
No. Use a full pipe design, a drop structure or a Parshall flume for open channel flow. A closed pipe magmeter requires a full pipe for accurate reading.
How do I get a quote?
Send us your flow range in cubic meters per hour, pressure in bar, temperature in degrees Celsius, pipe size DN and flange standard. Contact Silver Automation Instruments at Tel +86-135-1213-1526, WhatsApp 86-135-12131526 or WeChat +86 13512131526.
