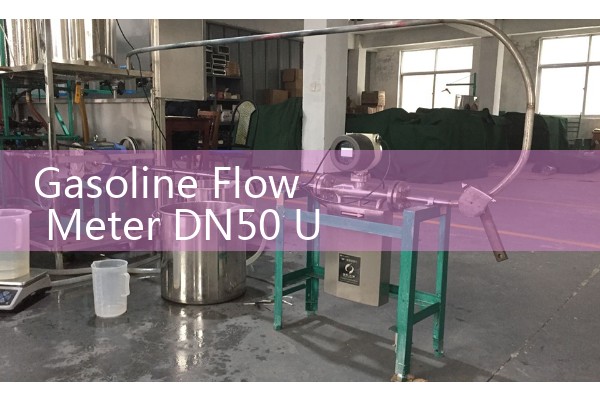

Gasoline Flow Meter DN50 Underground Tank Manifold Sizing
For a DN50 gasoline flow meter on an underground tank manifold, a Coriolis mass flow meter gives direct mass measurement, eliminates moving parts, and meets ATEX Zone 1 safety. Manifold sizing depends on total peak flow, number of tanks served at the same time, and the need to keep back pressure high enough to stop vapor lock. A practical rule: keep gasoline velocity under 2.5 m/s inside the manifold header and match branch sizes exactly to valve and meter connections.
Why a Coriolis Meter for Gasoline on Underground Tanks
Gasoline stored underground brings a few challenges. Vapor pressure changes with temperature, density shifts when blends change, and ATEX safety is mandatory. Silver Automation Instruments supplies Coriolis mass flow meters that read directly in kilograms or tonnes per hour, so you avoid density compensation. Our DN50 CMF050 model handles flows up to 80,000 kg/h with 0.1 % accuracy and has no moving parts that wear from gasoline additives.
Here is the thing, turbine meters lose accuracy when gasoline contains ethanol or when back pressure is low. In practice, we have seen turbine meter drift exceed 0.5 % after only 12 months in West African terminals. The Coriolis meter stays steady because it does not depend on bearings or mechanical registers.
Why Magnetic Flow Meters Are Not Suitable for Gasoline Manifolds
We produce electromagnetic flow meters for water and chemical applications, but gasoline has a conductivity below 0.01 µS/cm, which is far too low for a mag meter to operate. Many customers ask us about installing a magnetic flow meter on a fuel manifold because they see the large line sizes. Do not try it; the meter will simply output zero. For hydrocarbon liquids like gasoline, stick with Coriolis or positive displacement technology.
DN50 Manifold Sizing Rules for Underground Tanks
When you connect a single DN50 flow meter to a manifold serving three or four underground tanks, the header pipe must not create excessive pressure drop. We recommend a manifold header diameter of at least DN65 for total flow rates above 600 L/min. For smaller totals, a DN50 header can work, but calculate the velocity first. If gasoline velocity goes above 3 m/s, you risk static charge build-up and higher pressure loss across branches.
A typical installation we designed for a Vietnamese petroleum depot used a DN65 header feeding four DN50 branch lines, each with a shutoff valve and a pressure relief bung. The Coriolis meter was installed on the main supply line before the manifold, with a minimum straight run of 5DN upstream and 3DN downstream. That depot fills road tankers at 1,200 L/min, and the back pressure maintained by the manifold valves is 0.8 bar, which is enough to prevent cavitation in the meter tubes.
Installation Tips and Vapor Lock Prevention
Install the flow meter as close to the pump discharge as practical, but keep it away from underground tank vent lines. Most engineers skip this part: a low point in the pipe can trap gasoline vapor and cause measurement spikes. Always install the meter in a slightly upward sloping pipe section to let vapor bubbles travel back to the tank. ATEX Zone 1 certification
We have seen on customer sites many times that a missing vapor bung on the manifold leads to inaccurate readings. The solution is simple: add a small DN15 vapor return line from the manifold top back to the tank ullage space. This keeps the meter flooded with liquid and stable.
Real-World Sizing from a Nigerian Fuel Terminal
Last year, a fuel terminal in Nigeria needed to replace a mechanical meter on a DN50 gasoline loading arm for underground tanks. Their daily throughput is 200,000 litres, and they load three trucks at once. We sized a CMF050 DN50 Coriolis mass flow meter and a DN80 manifold with three DN50 branch connections. After installation, batch accuracy improved from ±0.5 % to ±0.15 %, saving roughly 12,000 USD per year in gasoline shrinkage. The project was commissioned within four days, and we provided remote support via WhatsApp and screen share.
Frequently Asked Questions About Gasoline Flow Meters and Manifolds
Q: Can I use a turbine meter instead of a Coriolis for gasoline underground tank manifold?
A: You can, but turbine meters need high back pressure and frequent calibration. Coriolis meters give direct mass flow, require less maintenance, and are approved for custody transfer in many countries without pulse interpolation issues.
Q: What is the minimum back pressure needed for the Coriolis CMF050?
A: For gasoline at 30 deg C, keep downstream pressure above 1.5 bar absolute to avoid two-phase flow. Our meter can handle lower if vapor is managed, but we recommend 1 bar gauge minimum at the meter outlet.
Q: How do I calculate the manifold header size for three underground tanks?
A: Sum your peak filling flow for all tanks that run concurrently. Then size the header so that velocity stays under 2.5 m/s. For 800 L/min total, DN65 is safe. We can provide a pipe sizing calculator when you send your flow data.
Q: Does the DN50 Coriolis meter work with gasoline blends like E10 or E85?
A: Yes, the meter measures mass flow regardless of ethanol content. The only check is material compatibility. Our standard stainless steel 316L is fine for ethanol up to E85. Verify seal materials with us for high ethanol mixtures.
Q: What approvals are needed for gasoline custody transfer metering in the Middle East?
A: Typically OIML R117 or MID depending on country. Our CMF series has ATEX, IECEx, and some models with OIML certification. We can assist with local pattern approval via our distribution partners in UAE, Saudi Arabia, and Oman.
Send us your application details for a DN50 gasoline flow meter and manifold sizing recommendation. Include your tank count, desired flow range in L/min or kg/h, operating pressure in bar, temperature in deg C, and whether you need ATEX or IECEx certification. Email [email protected] or visit our Coriolis flow meter page for data sheets and CAD drawings of the CMF050 meter. Our team supports projects across Southeast Asia, Africa, Middle East, and Oceania.
